Understanding the Fuel Injector Noid Light: A Comprehensive Guide for Vehicle Diagnostics

The fuel injector noid light is a diagnostic tool used to test the electrical signal sent to fuel injectors in internal combustion engines. It provides a visual indication—typically a flashing light—when the engine control unit (ECU) sends a pulse to activate the injector. This tool is essential for troubleshooting fuel delivery issues, confirming injector operation, and verifying proper ECU function without relying solely on expensive scan tools.

What Is a Fuel Injector Noid Light?

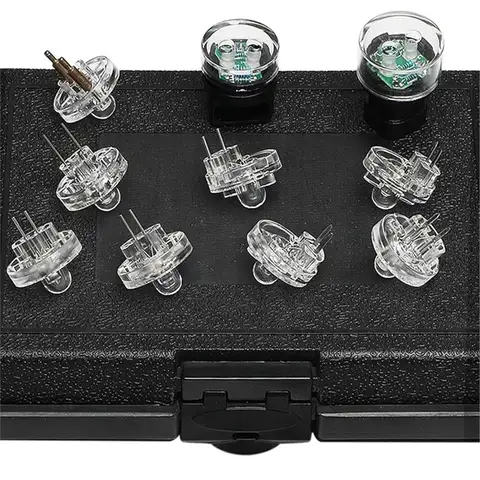

Fuel Injector Noid Light

A plug-in diagnostic device that connects to the fuel injector's electrical connector and flashes when the ECU sends a pulse to the injector. It helps determine whether the ECU is sending the correct signal, not whether the injector itself is functioning properly.

ECU (Engine Control Unit)

The central computer in a vehicle responsible for managing engine operations, including fuel injection timing and duration based on sensor inputs.

Injector Pulse Signal

An electrical signal from the ECU to the fuel injector, typically a short burst of voltage (e.g., 12V) lasting a few milliseconds, which opens the injector to allow fuel into the combustion chamber.

Why Use a Fuel Injector Noid Light?

Using a noid light is one of the most cost-effective and reliable methods to verify if the ECU is sending a proper signal to the fuel injectors. It’s especially useful when diagnosing symptoms like no-start, rough idle, or misfires. Unlike scan tools, which may not always detect intermittent signal issues, a noid light gives immediate visual feedback.
Common scenarios where a noid light is essential:
- Diagnosing a no-start condition - Confirming injector pulse after replacing the ECU or ignition module - Verifying signal integrity in vehicles with aftermarket engine management systems - Troubleshooting intermittent stalling or hesitation

Step-by-Step Guide: How to Use a Fuel Injector Noid Light

1. Locate the fuel injector electrical connector—usually found on top of the engine, near the fuel rail. Refer to your vehicle’s service manual for exact location.
2. Turn the ignition to the ON position (without starting the engine)—this powers the ECU and allows it to send signals to the injectors.
3. Connect the noid light to the injector connector—match the color-coded wires to the injector’s power and ground terminals. Most noid lights have a plug that fits directly into the injector harness.
4. Start the engine or crank it—observe the noid light. A steady or flashing light indicates the ECU is sending a pulse.
5. Interpret the results—if the light flashes, the ECU is working correctly. If it does not flash, the issue may be in the ECU, wiring, fuse, or ignition switch.

Common Issues and How to Avoid Them

Even with a simple tool like a noid light, users can make mistakes. Here are key pitfalls and how to avoid them:
- Using the wrong noid light model: Not all noid lights are compatible with every vehicle. Ensure the light matches your vehicle’s voltage (usually 12V) and injector type (e.g., high-impedance vs. low-impedance).
- Poor connection: A loose or corroded connector can cause false negatives. Clean the connector and ensure a secure fit.
- Misinterpreting results: A flashing light means the ECU is sending a signal—but it doesn’t confirm the injector is spraying fuel. Use a fuel pressure gauge and visual inspection to confirm actual fuel delivery.

Comparison of Noid Light Models and Features

Feature	Standard Noid Light	LED Digital Noid Light	Universal Diagnostic Noid Light
Compatibility	12V systems, most gasoline engines	12V & 5V systems, includes auto-sensing	Wide range, supports multiple injector types
Indicator Type	Basic LED flash	LED + digital display (pulse count)	LED + audible beep
Build Quality	Plastic housing, basic wiring	Durable ABS casing, reinforced connectors	Heavy-duty, weather-resistant
Price Range (USD)	$8–$15	$20–$30	$25–$40
Best For	Basic diagnostics, hobbyists	Professional use, detailed analysis	Heavy-duty vehicles, off-road use

Real-World Scenario: Diagnosing a No-Start Condition

Problem: A 2018 Honda Civic won’t start. The engine cranks but no fuel is delivered.
Solution Summary: Use a fuel injector noid light to verify if the ECU is sending a pulse to the injectors. If no pulse is detected, the issue is likely in the ECU, ignition system, or wiring. If a pulse is present, the problem lies in fuel pressure or injector mechanical failure.
Step-by-Step Diagnosis:

1. Disconnect the battery for 30 seconds to reset the ECU.
2. Locate the fuel injector connectors on the fuel rail.
3. Connect the noid light to the first injector connector (e.g., cylinder 1).
4. Turn the ignition to ON and observe the light. If it flashes, the ECU is sending a signal.
5. Crank the engine and check for consistent flashing. If no flash, check the fuse, relay, and crank sensor.
6. If the light flashes, check fuel pressure using a gauge. If pressure is low, inspect the fuel pump and filter.
7. If pressure is normal but engine still won’t start, test the injectors for mechanical failure.

Final Recommendations

For reliable diagnostics, always use a noid light that matches your vehicle’s specifications. While basic models are affordable, investing in a digital or universal noid light offers better accuracy and durability. Pair the noid light with a fuel pressure gauge and visual inspection for a complete diagnostic workflow.
Remember: A flashing noid light confirms ECU signal output—but not fuel delivery. Always follow up with additional tests to pinpoint the root cause. With proper use, the fuel injector noid light remains one of the most effective tools in any mechanic’s diagnostic toolkit.
