What is a 2 Digit 7 Segment Display and How Does It Work?
The
2 digit 7 segment display is a widely used electronic component for displaying numerical information in digital devices. It is especially popular in DIY electronics, home automation, and industrial control systems. Answer first: A 2 digit
7 segment display is a device that uses two sets of seven LED segments to show numbers from 0 to 99. It works by lighting up specific segments to form digits.
- 7 Segment Display
- A display made of seven LED segments arranged in a pattern to represent digits from 0 to 9.

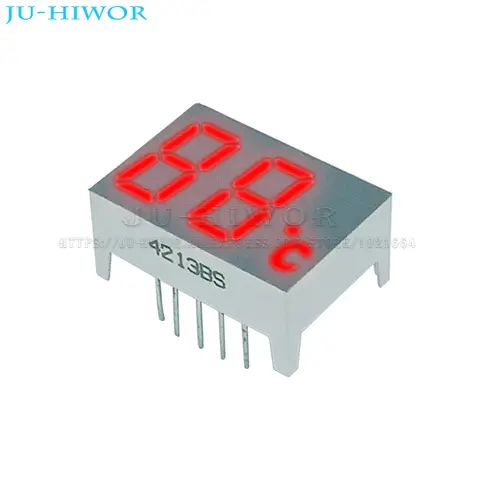

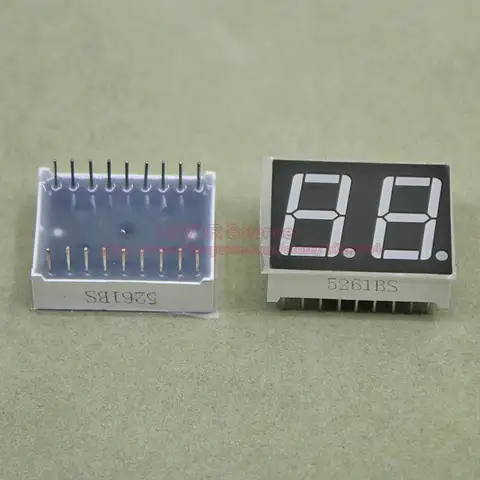

- 2 Digit 7 Segment Display
- A display that combines two 7 segment displays to show numbers from 00 to 99.
In a typical setup, each digit is controlled by a microcontroller like an Arduino or Raspberry Pi. The segments are labeled from A to G, and each segment corresponds to a specific part of the digit. For example, to display the number 1, only segments B and C are lit. Here’s how it works in a real-world scenario:
- Connect the 2 digit 7 segment display to a microcontroller using a driver IC like the MAX7219.
- Write a simple program to send the desired number to the display.
- Observe the display lighting up the correct segments to show the number.
This type of display is commonly used in digital clocks, counters, and meters. It is also a great learning tool for beginners in electronics.
How to Choose the Best 2 Digit 7 Segment Display for Your Project?
Answer first: To choose the best 2 digit 7 segment display, consider the display type (common cathode or common anode), brightness, size, and compatibility with your microcontroller. When selecting a 2 digit 7 segment display, it's important to match it with your project requirements. For example, if you're building a digital clock, you’ll need a display that is bright enough to be visible in different lighting conditions. Here’s a comparison of some common 2 digit 7 segment displays:
| Model | Type | Size (mm) | Brightness (mcd) | Compatibility |
| Common Cathode 2 Digit Display | Common Cathode | 14.6 x 46.8 | 500 | Arduino, Raspberry Pi |
| Common Anode 2 Digit Display | Common Anode | 14.6 x 46.8 | 300 | Arduino, Raspberry Pi |
| High Brightness 2 Digit Display | Common Cathode | 14.6 x 46.8 | 1000 | Arduino, Raspberry Pi |
In my experience, the common cathode type is easier to work with for beginners because it requires fewer resistors and is more compatible with standard microcontroller setups. However, if you're working on a project that requires high brightness, such as an outdoor display, the high brightness version is the better choice.
What Are the Common Issues with 2 Digit 7 Segment Displays and How to Fix Them?
Answer first: Common issues with 2 digit 7 segment displays include incorrect digit display, flickering, and no display at all. These can usually be resolved by checking the wiring, power supply, and code. One of the most common problems I’ve encountered is when the display shows the wrong number or flickers. This is often due to incorrect wiring or a faulty driver IC. Here’s how to troubleshoot and fix these issues:
- Check the wiring between the display and the microcontroller. Ensure that the segments and digits are connected correctly.
- Verify the power supply. A 2 digit 7 segment display typically requires 5V. If the voltage is too low, the display may not work properly.
- Test the driver IC. If you're using a MAX7219 or similar IC, try replacing it with a new one to see if the issue is resolved.
- Review your code. Make sure the code is sending the correct data to the display. A simple typo can cause the display to show incorrect numbers.
In one of my projects, I had a flickering display due to a loose connection between the display and the driver IC. After tightening the connection and reprogramming the microcontroller, the display worked perfectly.
User Reviews of 2 Digit 7 Segment Displays on AliExpress
Answer first: Users on AliExpress generally rate 2 digit 7 segment displays highly for their affordability, ease of use, and compatibility with various microcontrollers. Based on user feedback, the most popular 2 digit 7 segment displays on AliExpress are praised for their reliability and value for money. Many users mention that the displays work well with Arduino and Raspberry Pi projects. Here are some common user comments: - “Great for beginners. Easy to connect and works perfectly with my Arduino Uno.” - “The display is bright and clear. I used it in a digital clock and it looks amazing.” - “The package included everything I needed. The display arrived in good condition and works as expected.” However, some users have reported issues with the quality of the display, such as dim segments or incorrect digit display. These issues are usually resolved by checking the wiring and power supply.
Other Related Products and Uses
In addition to the 2 digit 7 segment display, there are several other related products that you might find useful for your project. These include: -
3 digit 7 segment display: Ideal for displaying numbers up to 999. -
4 digit 7 segment display: Suitable for more complex projects like digital clocks or counters. -
7 segment display 7: A single-digit display for simple applications. -
10 digit 7 segment display: Used in industrial applications for displaying large numbers. -
8 digit 7 segment display: Often used in digital scoreboards and meters. -
7 segment digital display: A general term for any display using 7 segments. -
Double digit 7 segment display: Another term for a 2 digit 7 segment display. -
Seven segment digital display: A common name for 7 segment displays in general. Each of these displays has its own use case, and choosing the right one depends on your project requirements. For example, if you're building a digital clock, a
4 digit 7 segment display would be more appropriate than a 2 digit 7 segment display.
