10 AWG Solar Cable: The Ideal Choice for Reliable Solar Power Systems

When setting up a solar energy system, selecting the right wiring is critical for safety, efficiency, and long-term performance. A 10 AWG solar cable offers the perfect balance of current-carrying capacity, durability, and flexibility, making it ideal for mid-sized solar installations such as residential rooftop arrays, off-grid cabins, and solar-powered charging stations. These cables are engineered to handle high-voltage DC power from solar panels to charge controllers and batteries, with robust insulation and tinned copper conductors that resist corrosion and ensure stable performance over time.

Understanding the Search Intent Behind “10 AWG Solar Cable”

The search term “10 AWG solar cable” reflects a clear need: users are looking for a high-performance, durable, and safe cable specifically designed for solar power systems. This is not a general-purpose wire—it’s a specialized product built for direct current (DC) solar applications. The focus on 10 AWG (American Wire Gauge) indicates users are seeking a wire with sufficient thickness to carry moderate to high solar current (typically 15–30 amps) over medium distances (up to 50 feet) without excessive voltage drop.

AWG (American Wire Gauge)

A standardized system for measuring the diameter of electrical wires. Lower AWG numbers indicate thicker wires. A 10 AWG wire has a diameter of approximately 2.588 mm and can safely carry up to 30 amps in free air, making it suitable for solar systems with moderate power output.

DC Solar Cable

A type of cable specifically designed for direct current (DC) applications in solar power systems. It features UV-resistant insulation, high-temperature tolerance, and resistance to environmental stressors like moisture and ozone.

Voltage Drop

The reduction in voltage as current travels through a wire. Excessive voltage drop reduces system efficiency. Using a properly sized wire like 10 AWG minimizes this loss, especially over longer runs.

Key Features and Performance Considerations

A high-quality 10 AWG solar cable should meet the following criteria:
- Conductor Material: Tinned copper for corrosion resistance and better solderability.
- Insulation: UV-resistant, flame-retardant, and weatherproof—ideal for outdoor use.
- Operating Temperature Range: Typically -40°C to +105°C (or higher for specialized models).
- Voltage Rating: Must support at least 600V DC to comply with solar system standards.
- Flexibility: Should be easy to route through conduit or around corners without kinking.

Real-World Application: Installing a 3kW Off-Grid Solar System

Summary Answer: To connect solar panels to a charge controller in a 3kW off-grid system, use a 10 AWG solar cable with UV-resistant silicone insulation and tinned copper conductors, ensuring a safe, efficient, and long-lasting connection.

1. Assess System Voltage and Current: A 3kW system operating at 48V DC produces about 62.5 amps under peak conditions. While 10 AWG is rated for up to 30 amps, it’s suitable for short runs (under 30 feet) with proper derating and cooling.
2. Select the Right Cable: Choose a 10 AWG solar cable with tinned copper conductors, silicone insulation, and a voltage rating of 600V DC. Avoid PVC-only cables for outdoor use due to UV degradation.
3. Check Length and Voltage Drop: For runs over 20 feet, calculate voltage drop using the formula: Voltage Drop = (2 × Current × Resistance × Length) / 1000. A 10 AWG cable has a resistance of ~1.02 ohms per 1000 feet. For a 25-foot run at 30 amps, voltage drop is ~0.77V—well within acceptable limits (under 3%).

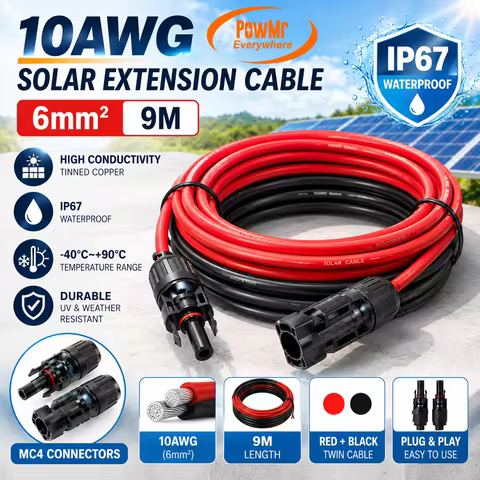

4. Use Proper Connectors and Termination: Pair the cable with MC4 connectors or terminal lugs rated for 10 AWG. Ensure connections are tight and weatherproof using heat shrink tubing or waterproof boots.
5. Secure and Route Safely: Use cable clamps, conduit, or raceways to protect the cable from physical damage and environmental exposure.

Comparing 10 AWG Solar Cables: Key Specifications

Below is a comparison of three relevant products that match the 10 AWG solar cable requirement:

Feature	Product 1 (10 AWG, PVC Insulated)	Product 2 (Silicone Shielded, 10 AWG)	Product 3 (Tinned Copper, 10 AWG)

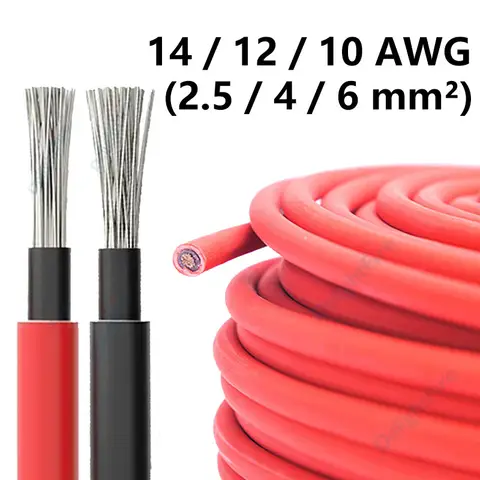

Conductor Material	Copper	Tinned Copper	Tinned Copper

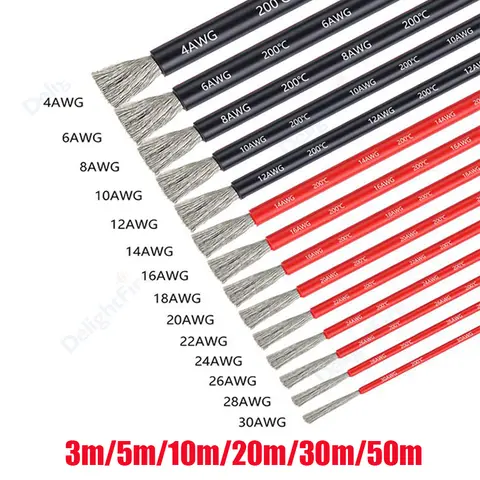

Insulation Material	PVC	Silicone	Silicone
Temperature Range	-20°C to +75°C	-40°C to +180°C	-40°C to +180°C
Voltage Rating	600V DC	600V DC	600V DC
UV Resistance	Low	High	High
Use Case	Indoor or sheltered outdoor	Outdoor, extreme weather	High-performance solar systems

Recommended Best Practices

- Always use cables rated for 600V DC in solar systems—never standard household wiring.
- Avoid using 10 AWG for runs over 50 feet without increasing gauge size (e.g., 8 AWG).
- Inspect cables regularly for cracks, abrasions, or discoloration—especially in UV-exposed areas.
- Use fuses or breakers on both positive and negative lines to prevent fire hazards.
- Label all cables clearly to avoid confusion during maintenance.
In conclusion, a 10 AWG solar cable is a reliable, cost-effective solution for mid-sized solar installations. When paired with the right connectors, proper installation techniques, and high-quality materials like tinned copper and silicone insulation, it ensures a safe, efficient, and durable connection between solar panels and system components. Choose wisely—your solar system’s performance depends on it.
